E46Track

Features E46Track

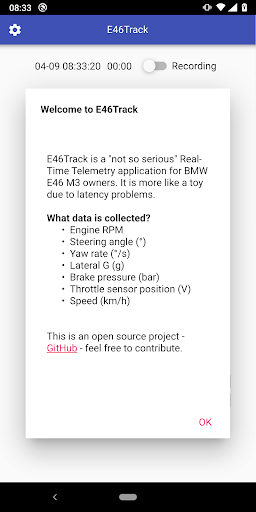

E46Track is a "not so serious" Real-Time Telemetry application for BMW E46 M3 owners.
It is more like a toy due to latency problems.What data is collected?
- speed (km/h) - engine rpm - steering angle (degree) - yaw rate (degree/sec) - lateral G (g) - brake pressure (bar) - throttle sensor position (V) - latitude, longitude, altitude, bearingWhat can you do with the collected data?
- replay them with E46Track - export frames for video rendering from E46Track - whatever you like, its a simple CSVDo I need to modify my car in any way?
- No, not for this app.
- You "just" need a proper WiFi OBDII K+DCAN interface.
If you have only the cable version with USB serial port, then it is possible to deploy the App to a Raspberry Pi or use a laptop.
- Further Information: https://github.com/tomicooler/E46TrackWhy it is a "not so serious" application?
- The data is queried from the car (the same way as you go live diagnostic mode with INPA software).
- Need to make 5 separate queries each takes up 150ms (one is 250ms).
The queries are configurable, e.g: speed is disabled by default.
- Anyway the replaying tool interpolates the data series, it is enhanced a bit.
